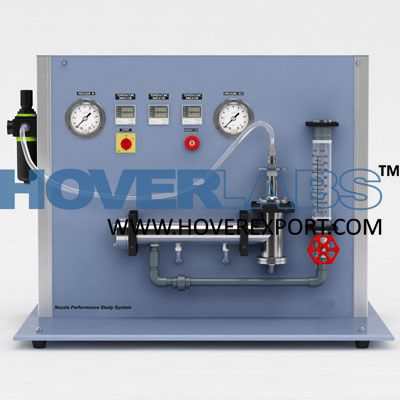

Nozzle Performance Study System

Model HV-EXP5010
Nozzle Performance Study System Determination of critical pressure ratio, nozzle thrust, baffle plate force, nozzle efficiency, "choking effect" Test chamber made of stainless steel, force measurement via bending beam 5 different nozzles. (4 convergent- divergent, 1 convergent) Measurement of pressure and temperature at nozzle inlet and outlet Needle valve for setting the back pressure Airflow directly indicated on flow meter.
