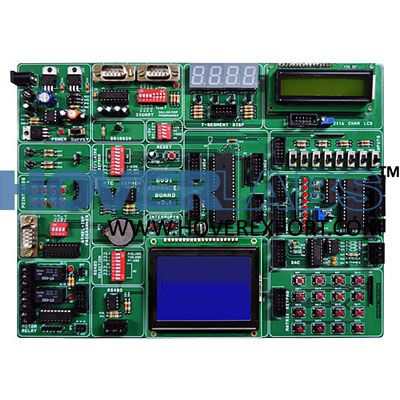

EMBEDDED PROJECT BOARD FOR 8051 FAMILY (PIC MICROCONTROLLER TRAINERS

Model HV-EXP5159
EMBEDDED PROJECT BOARD FOR 8051 FAMILY (PIC MICROCONTROLLER TRAINERS) CPU: Philips 89C51RD2 or 89S61X2 series On-board Internal Memory 64K Internal Program Memory 1K Internal Data Memory Speed up to 20 MHz with 6-clock cycles per machine cycle (40 MHz equivalent performance); up to 33 MHz with 12 clocks per machine cycle Four interrupt priority levels Seven interrupt sources Four 8-bit I/O ports available in 26 pin FRC polarized connector On-Board ISP(in system Programming) facility Windows Based ISP Programming Software Two 26pin FRC cable & one 40 Pin FRC cable On-Board REAL TIME CLOCK using RTC6242 On-Board 64K External DATA Memory using 2 nos. of 62256 I2C Serial EPROM using 93c46 On-Board Parallel Port brought out at 25 pin D-Type connector. All ICS are mounted on IC Sockets. Made of Bare board Tested Glass Epoxy SMOBC PCB. In-Built Power Supply of +5V/1A, ±12V/150mA Wooden enclosures of Light weight Wood. Users Manual with sample programs ALL IC-XX SERIES INTERFACING CARDS ARE COMPATIBLE WITH E89-02.
